PXベルト伝動　株式会社 椿本チエイン

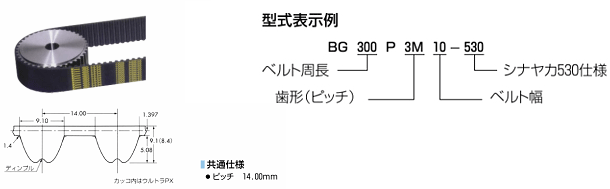

■ PXベルト　P14M形　RC仕様

PXベルト伝動　株式会社 椿本チエイン

型式 周長
(mm)		 歯数 価格（円）
ベルト幅(mm)
40 60 80 100 120
BG1120P14M 1120 80 14,501 21,751 28,112 35,089 40,151
BG1190P14M 1190 85 15,185 23,256 29,959 36,799 42,408
BG1246P14M 1246 89 15,800 23,735 30,985 38,030 44,392
BG1344P14M 1344 96 16,416 25,103 32,969 40,424 47,743
BG1400P14M 1400 100 16,895 25,718 33,584 41,519 49,111
BG1540P14M 1540 110 17,921 26,744 35,842 44,255 51,368
BG1610P14M 1610 115 18,400 27,497 36,799 45,281 53,215
BG1652P14M 1652 118 18,673 27,976 37,415 46,512 54,104
BG1680P14M 1680 120 18,878 28,112 37,688 46,991 54,857
BG1736P14M 1736 124 19,289 28,865 38,441 48,017 56,225
BG1778P14M 1778 127 19,426 29,344 38,920 48,974 57,182
BG1806P14M 1806 129 19,768 29,480 39,193 49,248 57,730
BG1890P14M 1890 135 20,520 30,575 40,424 51,232 59,440
BG1960P14M 1960 140 21,136 31,190 41,519 52,463 60,944
BG2002P14M 2002 143 21,614 31,601 42,271 53,215 61,834
BG2100P14M 2100 150 22,025 32,832 43,297 54,446 63,680
BG2240P14M 2240 160 22,777 34,063 45,144 56,704 66,416
BG2310P14M 2310 165 23,119 34,679 45,896 57,593 67,511
BG2380P14M 2380 170 23,256 35,294 46,649 58,824 69,084
BG2450P14M 2450 175 24,008 35,842 47,401 60,055 69,768
BG2590P14M 2590 185 24,898 37,415 49,111 62,312 72,504
BG2660P14M 2660 190 25,240 38,167 50,137 63,544 73,872
BG2800P14M 2800 200 25,992 39,672 51,847 65,801 76,608
BG3150P14M 3150 225 28,865 43,297 56,225 70,452 84,132
BG3360P14M 3360 240 30,712 45,418 59,440 75,240 88,920
BG3500P14M 3500 250 31,601 47,128 61,560 77,976 92,340
BG3850P14M 3850 275 34,200 51,232 67,032 85,500 99,180
BG4004P14M 4004 286 35,294 53,215 69,768 88,920 103,284
BG4508P14M 4508 322 38,441 58,072 75,924 95,076 113,544
