チェーン・ベルト・歯車伝導

スプロケット (株)椿本チエイン

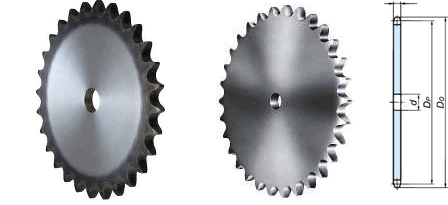

■ RSスプロケット 1Aタイプ



RS60(チェーンピッチ:19.05mm)
歯数 歯先硬化なし 歯先硬化処理品 ピッチ円
直径
(mm)
型 式 価 格
(円)
型 式 価 格
(円)
12 RS60-1A12T 403 RS60-1A12TQ 567 73.6
13 RS60-1A13T 445 RS60-1A13TQ 598 79.6
14 RS60-1A14T 500 RS60-1A14TQ 689 85.61
15 RS60-1A15T 525 RS60-1A15TQ 744 91.63
16 RS60-1A16T 598 RS60-1A16TQ 811 97.65
17 RS60-1A17T 610 RS60-1A17TQ 817 103.67
18 RS60-1A18T 659 RS60-1A18TQ 891 109.7
19 RS60-1A19T 720 RS60-1A19TQ 976 115.74
20 RS60-1A20T 738 RS60-1A20TQ 1,074 121.78
21 RS60-1A21T 781 RS60-1A21TQ 1,049 127.82
22 RS60-1A22T 860 RS60-1A22TQ 1,165 133.86
23 RS60-1A23T 921 RS60-1A23TQ 1,220 139.9
24 RS60-1A24T 994 RS60-1A24TQ 1,269 145.95
25 RS60-1A25T 1,049 RS60-1A25TQ 1,385 151.99
26 RS60-1A26T 1,061 RS60-1A26TQ 1,415 158.04
27 RS60-1A27T 1,122 RS60-1A27TQ 1,464 164.09
28 RS60-1A28T 1,183 RS60-1A28TQ 1,543 170.14
30 RS60-1A30T 1,318 RS60-1A30TQ 1,720 182.25
32 RS60-1A32T 1,519 RS60-1A32TQ 2,013 194.35
34 RS60-1A34T 1,610 RS60-1A34TQ 2,281 206.46
35 RS60-1A35T 1,714 RS60-1A35TQ 2,397 212.52
36 RS60-1A36T 1,824 RS60-1A36TQ 2,562 218.57
38 RS60-1A38T 1,934 RS60-1A38TQ 2,727 230.69
40 RS60-1A40T 2,135 RS60-1A40TQ 3,032 242.8
42 RS60-1A42T 2,647 RS60-1A42TQ 3,788 254.92
45 RS60-1A45T 2,776 RS60-1A45TQ 4,075 273.09
48 RS60-1A48T 3,379 RS60-1A48TQ 4,837 291.27
50 RS60-1A50T 3,520 RS60-1A50TQ 5,026 303.39
54 RS60-1A54T 3,642 RS60-1A54TQ 5,075 327.63
60 RS60-1A60T 4,038 RS60-1A60TQ 5,783 363.99
65 RS60-1A65T 5,966 RS60-1A65TQ 7,442 394.3
70 RS60-1A70T 6,771 RS60-1A70TQ 8,418 424.61
75 RS60-1A75T 7,930 RS60-1A75TQ 11,102 454.92

追加工は、三蔵にご下命ください
