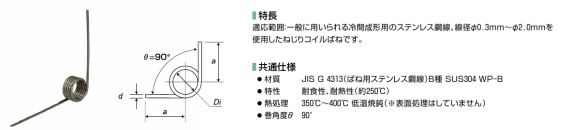

■ ねじりコイルばね Aタイプ

型式 価格
（円）		 外径
Di
(mm)		 線径
d
(mm)		 アーム長
a
(mm)		 許容
ねじり角度
φd
(mm)		 許容
トルク
(N・mm)		 ばね
定数
(N・mm/deg)		 案内棒
直径
(mm)
 袋入
個数
STA03-03-011

1,332

 3 0.3 15 68 2.62 0.038 2.5 10
STA03-03-014 1,332 3 0.3 15 89 2.62 0.029 2.5 10
STA03-03-021 1,332 3 0.3 15 110 2.62 0.024 2.5 10
STA03-04-014 1,332 3 0.4 15 53 6.23 0.118 2.5 10
STA03-04-019 1,332 3 0.4 15 69 6.23 0.090 2.5 10
STA03-04-028 1,332 3 0.4 15 85 6.23 0.073 2.5 10
STA03-05-013 1,332 3 0.5 15 41 11.43 0.279 2.5 10
STA03-05-023 1,332 3 0.5 15 54 11.43 0.213 2.5 10
STA03-05-034 1,332 3 0.5 15 67 11.43 0.173 2.5 10
STA04-04-014 1,332 4 0.4 20 68 6.23 0.091 3.4 10
STA04-04-019 1,332 4 0.4 20 89 6.23 0.069 3.4 10
STA04-04-028 1,332 4 0.4 20 111 6.23 0.056 3.4 10
STA04-05-018 1,332 4 0.5 20 53 11.43 0.217 3.4 10
STA04-05-023 1,332 4 0.5 20 70 11.43 0.166 3.4 10
STA04-05-034 1,332 4 0.5 20 86 11.43 0.134 3.4 10
STA04-06-021 1,332 4 0.6 20 45 19.80 0.440 3.4 10
STA04-06-028 1,332 4 0.6 20 59 19.80 0.336 3.4 10
STA04-06-041 1,332 4 0.6 20 73 19.80 0.272 3.4 10
STA05-05-018 1,332 5 0.5 20 64 11.43 0.177 4.3 10
STA05-05-023 1,332 5 0.5 20 83 11.43 0.135 4.3 10
STA05-05-034 1,332 5 0.5 20 104 11.43 0.109 4.3 10
STA05-06-021 1,332 5 0.6 20 54 19.80 0.361 4.3 10
STA05-06-028 1,332 5 0.6 20 71 19.80 0.276 4.3 10
STA05-06-041 1,332 5 0.6 20 88 19.80 0.223 4.3 10
STA05-07-025 1,332 5 0.7 20 48 31.56 0.657 4.3 10
STA05-07-033 1,332 5 0.7 20 62 31.56 0.502 4.3 10
STA05-07-048 1,332 5 0.7 20 77 31.56 0.407 4.3 10
STA06-06-021 1,433 6 0.6 20 64 19.80 0.306 5.2 5
STA06-06-028 1,433 6 0.6 20 84 19.80 0.234 5.2 5
STA06-06-041 1,433 6 0.6 20 104 19.80 0.189 5.2 5
STA06-08-029 1,433 6 0.8 20 47 44.71 0.940 5.2 5
STA06-08-037 1,433 6 0.8 20 62 44.71 0.718 5.2 5
STA06-08-055 1,433 6 0.8 20 76 44.71 0.582 5.2 5
STA06-10-036 1,433 6 1.0 20 39 87.83 2.229 5.2 5
STA06-10-047 1,433 6 1.0 20 51 87.83 1.705 5.2 5
STA06-10-069 1,433 6 1.0 20 63 87.83 1.380 5.2 5
STA07-07-025 1,433 7 0.7 30 65 31.56 0.486 6.0 5
STA07-07-033 1,433 7 0.7 30 84 31.56 0.372 6.0 5
STA07-07-048 1,433 7 0.7 30 104 31.56 0.301 6.0 5
STA07-09-032 1,433 7 0.9 30 49 64.23 1.296 6.0 5
STA07-09-042 1,433 7 0.9 30 64 64.23 0.997 6.0 5
STA07-09-062 1,433 7 0.9 30 80 64.23 0.802 6.0 5
STA07-12-043 1,433 7 1.2 30 36 142.57 3.946 6.0 5
STA07-12-056 1,433 7 1.2 30 47 142.57 3.018 6.0 5
STA07-12-083 1,433 7 1.2 30 58 142.57 2.443 6.0 5
STA08-08-029 1,433 8 0.8 35 43 44.71 1.049 6.8 5
STA08-08-037 1,433 8 0.8 35 80 44.71 0.556 6.8 5
STA08-08-055 1,433 8 0.8 35 100 44.71 0.450 6.8 5
STA08-09-032 1,433 8 0.9 35 38 64.23 1.662 6.8 5
STA08-09-042 1,433 8 0.9 35 73 64.23 0.880 6.8 5
STA08-09-062 1,433 8 0.9 35 90 64.23 0.712 6.8 5
STA08-12-043 1,433 8 1.2 35 41 142.57 3.518 6.8 5
STA08-12-056 1,433 8 1.2 35 53 142.57 2.690 6.8 5
STA08-12-083 1,433 8 1.2 35 66 142.57 2.178 6.8 5
STA09-09-032 1,433 9 0.9 40 43 64.23 1.494 7.7 5
STA09-09-042 1,433 9 0.9 40 62 64.23 1.034 7.7 5
STA09-09-062 1,433 9 0.9 40 100 64.23 0.640 7.7 5
STA09-12-043 1,433 9 1.2 40 31 142.57 4.583 7.7 5
STA09-12-056 1,433 9 1.2 40 45 142.57 3.173 7.7 5
STA09-12-083 1,433 9 1.2 40 73 142.57 1.964 7.7 5
STA09-14-050 1,433 9 1.4 40 27 228.40 8.327 7.7 5
STA09-14-065 1,433 9 1.4 40 52 228.40 4.409 7.7 5
STA09-14-096 1,433 9 1.4 40 75 228.40 2.998 7.7 5
STA10-10-036 1,534 10 1.0 45 42 87.83 2.049 8.5 2
STA10-10-047 1,534 10 1.0 45 62 87.83 1.416 8.5 2
STA10-10-069 1,534 10 1.0 45 119 87.83 0.737 8.5 2
STA10-14-050 1,534 10 1.4 45 43 228.40 5.259 8.5 2
STA10-14-065 1,534 10 1.4 45 56 228.40 4.021 8.5 2
STA10-14-096 1,534 10 1.4 45 83 228.40 2.734 8.5 2
STA10-16-057 1,534 10 1.6 45 36 322.05 8.817 8.5 2
STA10-16-075 1,534 10 1.6 45 47 322.05 6.742 8.5 2
STA10-16-110 1,534 10 1.6 45 59 322.05 5.458 8.5 2
STA12-12-043 1,534 12 1.2 50 58 142.57 3.451 9.5 2
STA12-12-056 1,534 12 1.2 50 76 142.57 1.874 9.5 2
STA12-12-083 1,534 12 1.2 50 93 142.57 1.517 9.5 2
STA12-16-057 1,534 12 1.6 50 42 322.05 7.520 9.5 2
STA12-16-075 1,534 12 1.6 50 56 322.05 5.751 9.5 2
STA12-16-110 1,534 12 1.6 50 82 322.05 3.910 9.5 2
STA12-18-064 1,534 12 1.8 50 29 455.67 11.872 9.5 2
STA12-18-084 1,534 12 1.8 50 50 455.67 9.078 9.5 2
STA12-18-124 1,534 12 1.8 50 73 455.67 6.173 9.5 2
STA14-14-050 1,534 14 1.4 60 58 228.40 3.893 12.0 2
STA14-14-065 1,534 14 1.4 60 76 228.40 2.977 12.0 2
STA14-14-096 1,534 14 1.4 60 94 228.40 2.410 12.0 2
STA14-18-064 1,534 14 1.8 60 30 455.67 14.977 12.0 2
STA14-18-084 1,534 14 1.8 60 57 455.67 7.929 12.0 2
STA14-18-124 1,534 14 1.8 60 84 455.67 5.392 12.0 2
STA14-20-072 1,534 14 2.0 60 27 628.00 22.543 12.0 2
STA14-20-094 1,534 14 2.0 60 52 628.00 11.934 12.0 2
STA14-20-138 1,534 14 2.0 60 65 628.00 9.661 12.0 2
